名称:循环流化床锅炉Circulating fluidized bed boiler
详细介绍

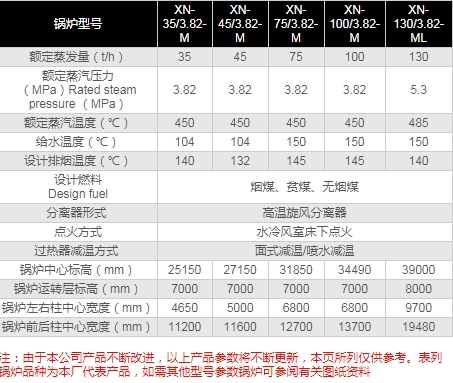

  产品范围

  额定蒸发量:10-130t/h,额定压力:1.0-9.8MPa

  该系列锅炉为自然循环单锅筒水管锅炉,TT型布置。炉膛为膜式水冷壁悬吊封闭结构,采用水冷风室和水冷布风板,床下点火。高温绝热蜗壳型旋风筒布置在炉膛出口,采用支撑结构,分离效率高(≥99%)。过热器、省煤器、空气预热器布置在尾部竖井。 锅炉设计采用成熟技术,具有防磨性能好、煤种适应性广、脱硫效率高等特点;能在30-100%负荷下稳定运行。

  Product Range

  Rated evaporation: 10-130t / h, rated pressure: 1.0-9.8MPa

  The series of boilers for natural circulation single-drum tube boiler, TT-type layout. Furnace for the film-type water-cooled wall hanging closed structure, the use of water-cooled air chamber and water-cooled cloth plate, bed ignition. High temperature insulated volute-type cyclone tube arranged in the furnace exports, the use of supporting structure, high separation efficiency (≥ 99%). Superheater, economizer, air preheater arranged in the tail shaft. The boiler design adopts mature technology, which has the features of good anti-wear performance, wide adaptability of coal types, high desulfurization efficiency, and stable operation under 30-100% load.
